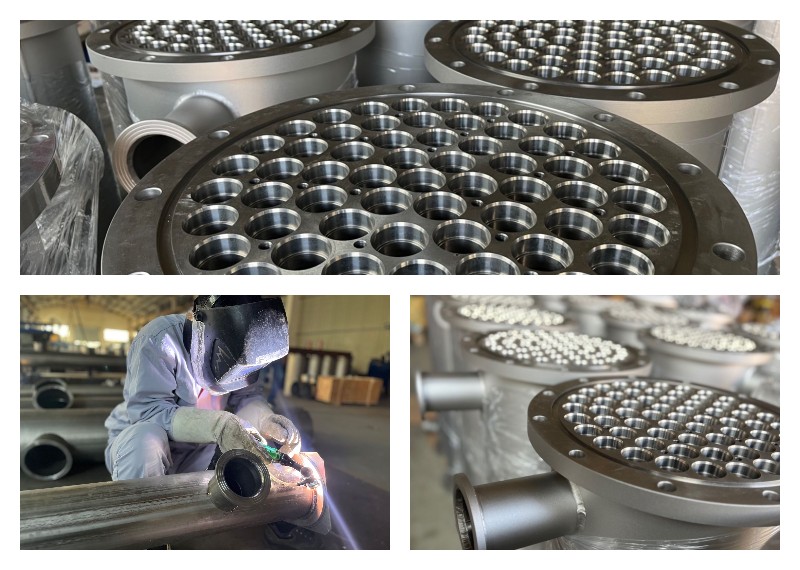

TFT has many years of experience in the design and manufacture of membrane modules for different kind of application in process industry. The maximum loading capacity per one single module can reach 800 elements, with membrane area 340m2.
● Load Qty：1, 3, 7, 12, 19, 37, 50, 61, 74, 91, 99, 138, 241, 588, 800pcs
● Element Length：100~1500mm/ OD：25, 30, 40mm
● Vessel M.O.C：SUS304(L), SUS316(L), TA2, CS/Rubber, PVC, FRPP
● Gasket：EPDM, Silicon, FKM, KALREZ ,PTFE
● Connector：Flange, Union, Clamp
● Pressure：0-1.0Mpa ,0-1.6Mpa ,0-2.5Mpa
● Standard：Chemical, Sanitary
● Surface：Mechanical polishing, Sandblasting
